Rite-Hite 52100 Rite-Hite 52100
Rite-Hite 52100


Regular price

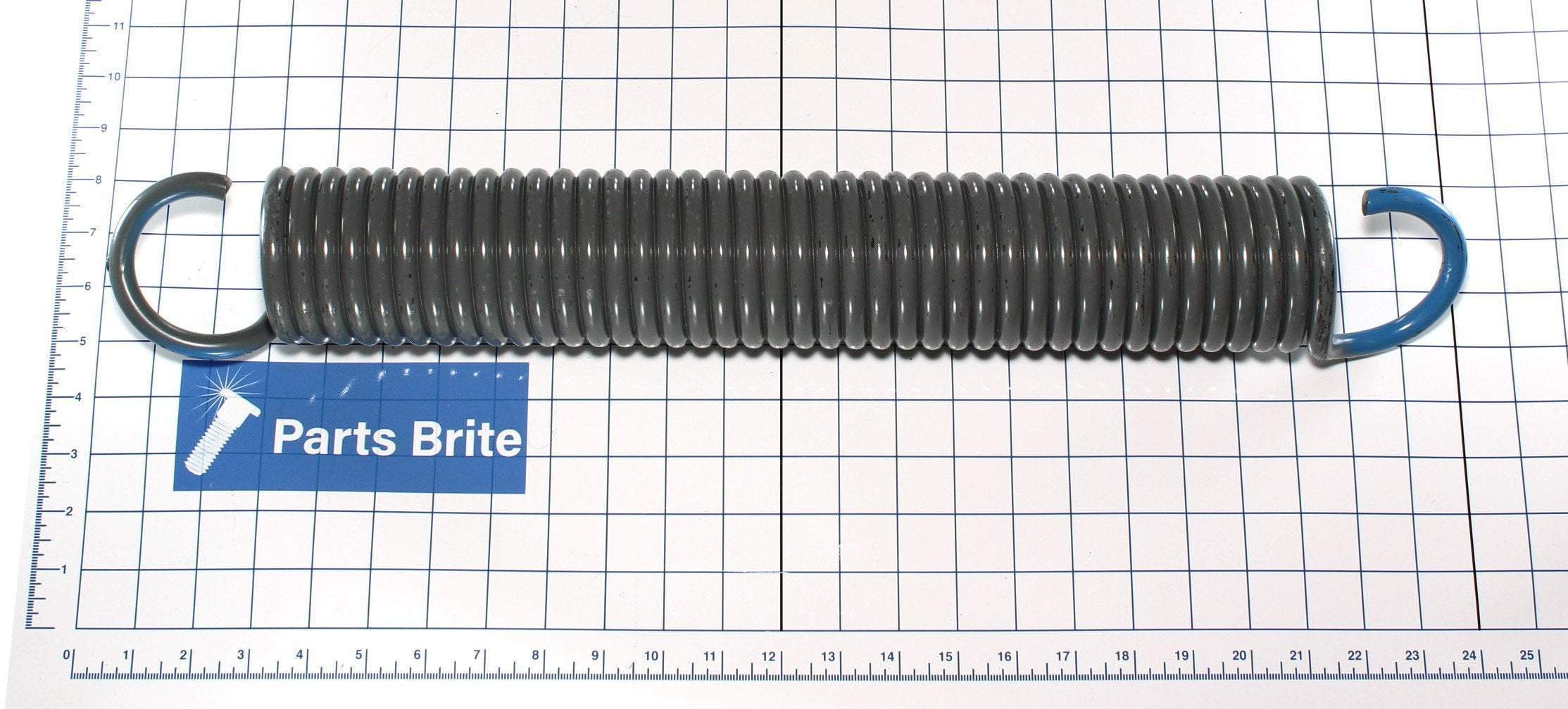

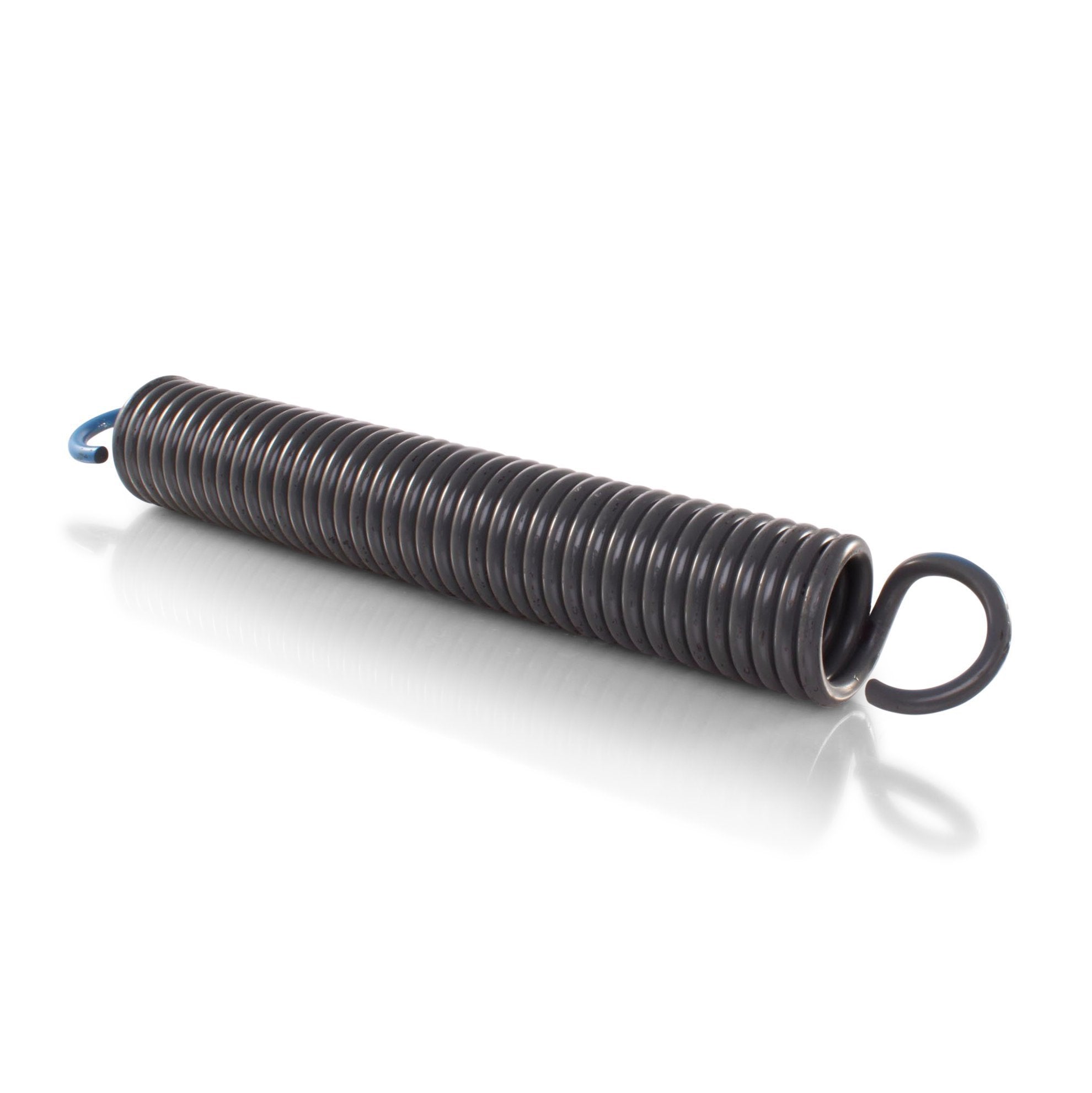

Main Extension Spring

If you think this might be the spring you need, you are probably right.

The 52100 main spring is by far our best-selling and most-reviewed spring.

Length: 23 1/2"
Coil Diameter: 3"
Wire Size: .435"
Number of Coils: 41
Type: Extension

Need help tracking down other dock leveler springs? Click here go the the Spring Finder.

This is for use with Rite-Hite dock levelers.

Price: $147.60 USD

More Description for Rite-Hite 52100

Mechanical dock levelers use springs to move up and down. Part of the spring system works to extend and pull back the dock leveler as it moves up and down. The power to lift the dock leveler is from the main extension spring. Since springs are temperature-sensitive, they need continual adjustment to work correctly in hot and cold weather. This causes the springs to wear down more quickly. In addition, springs are the most constantly used parts on mechanical dock levelers, so they wear out faster than any other parts and require more frequent replacement. The 52100 spring is a main extension spring for a Rite Hite mechanical dock lifter. While primarily used in Rite Hite models, it can be used in other manufacturers. When this spring fails, the dock leveler will not extend, and the dock leveler cannot be manually opened. If this extension spring needs to be replaced, replacing them in pairs is recommended. Because this steel spring is so popular, we always keep them in stock.
