More Description for Tri Lite SG10B-115RG

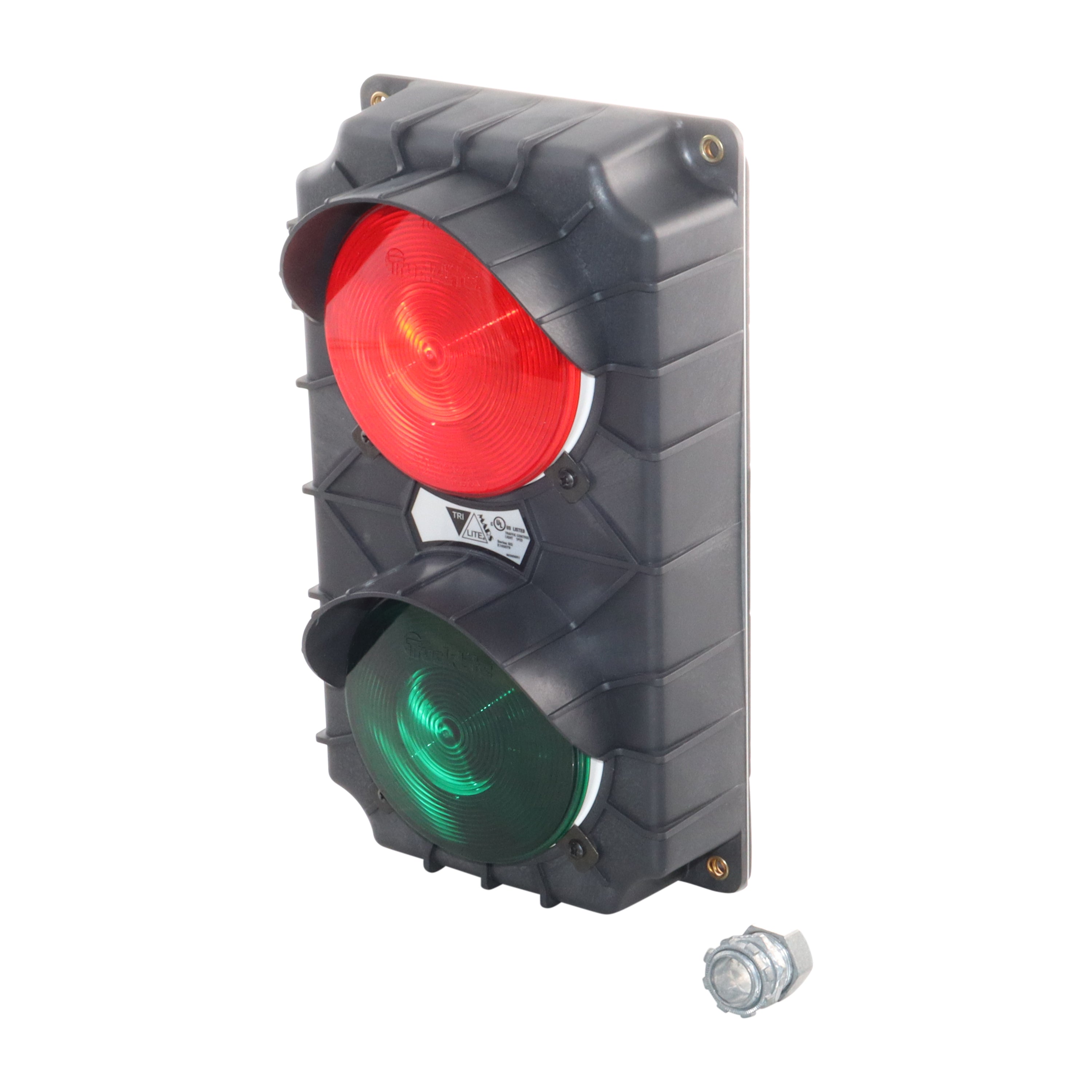

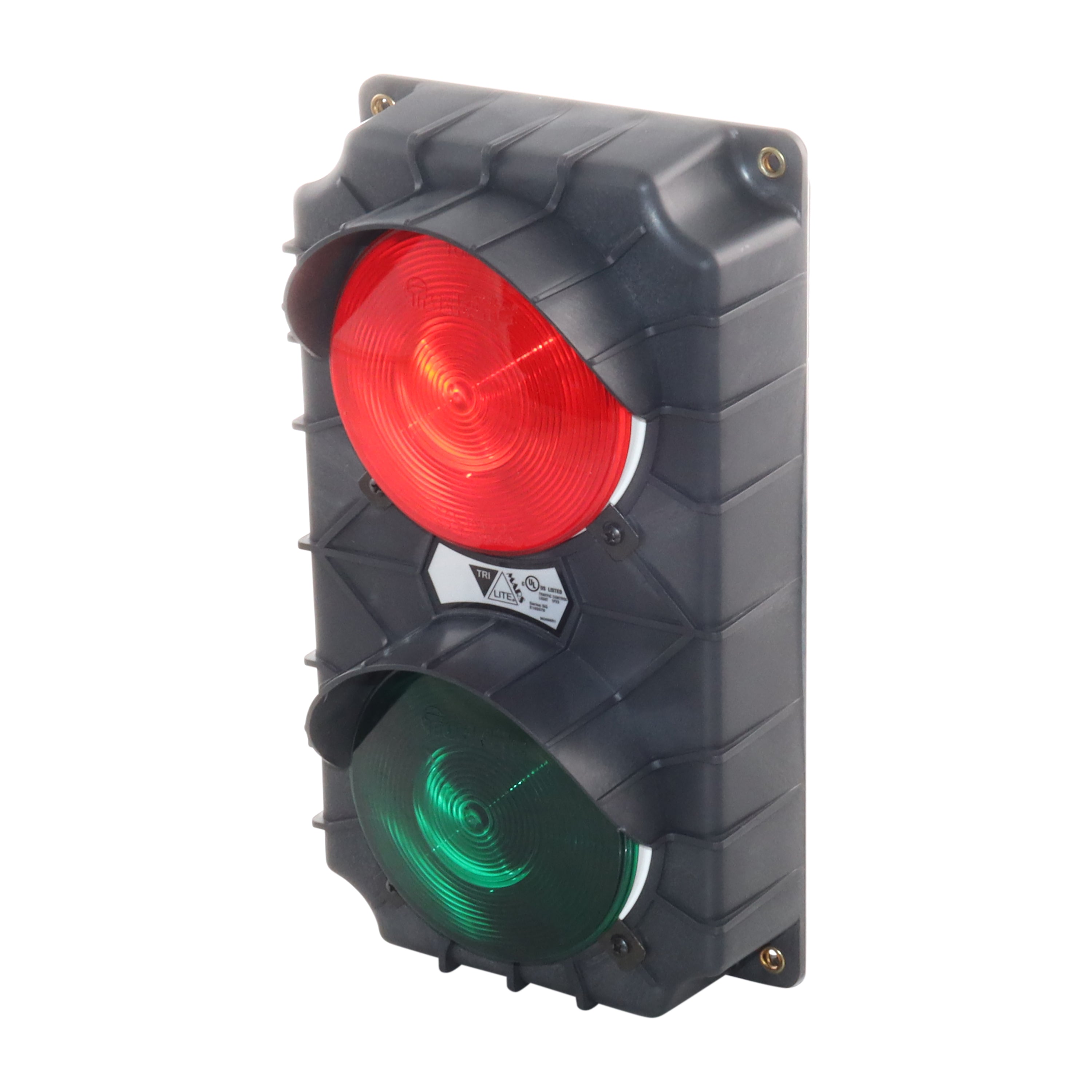

Having the proper lighting is essential to the safety of truck drivers, cargo loaders, and other trucking industry personnel. This outside truck light has a black body and contains red and green lights. The lights are used on the outside of the dock to alert workers when it is safe to use the dock leveler and when it is unsafe. This model is controlled externally. This outside truck light is intended for use with Tri Lite dock levelers.
Questions & Answers
Ask a Question-
What do you mean by a drone model?
There is no switch in this model. It relies on external control.
-
how do you switch colors? remote?
While the case does come in black or yellow, I assume you mean the red or green light. :-)

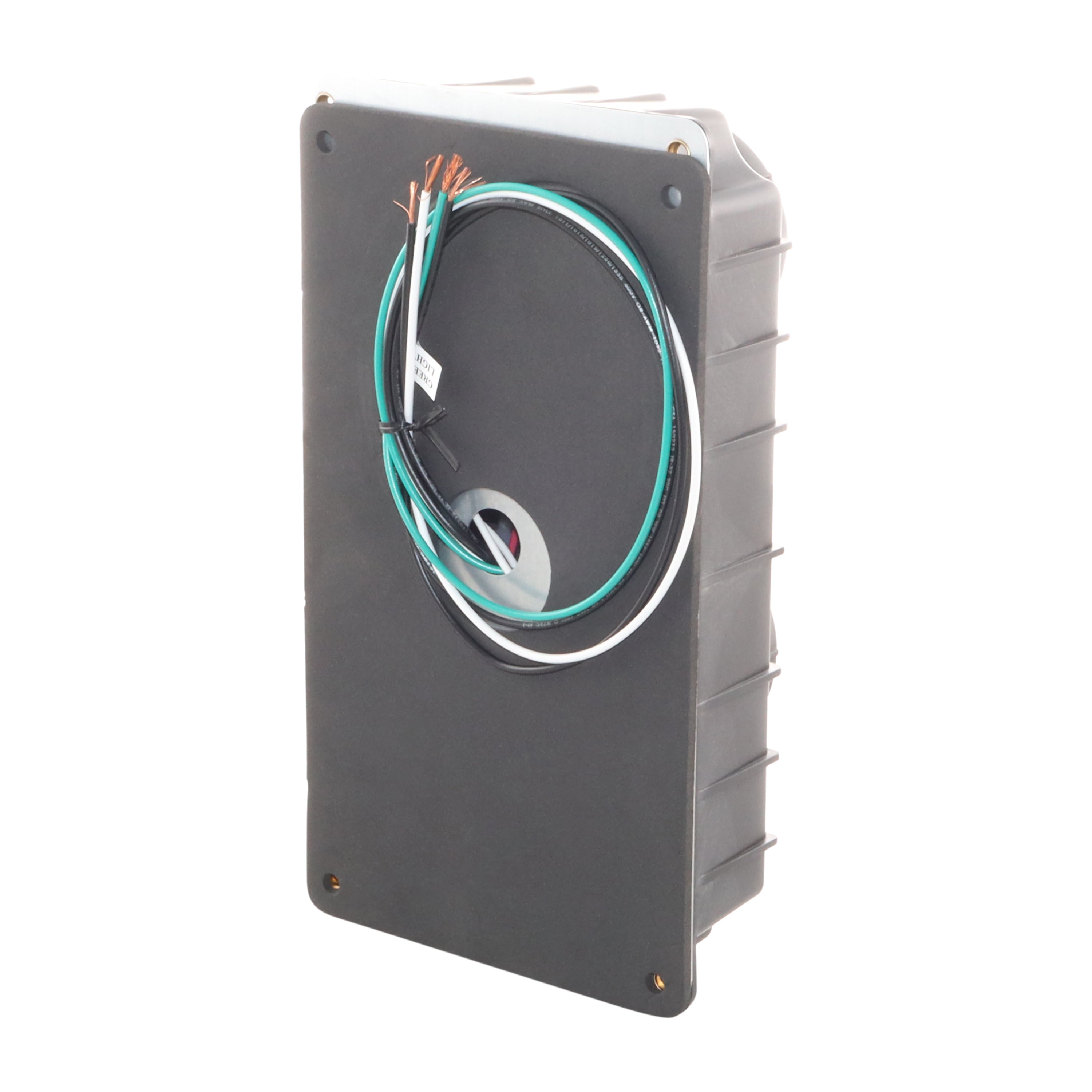

There are four wires in the back of the light:
Black - power for the red light
Green - ground
White - neutral
Black (labeled green) - power for the green light
The SG10 model doesn't come with a switch as it's a drone model generally used on the outside of the dock.  The SG20 model comes with a switch on the bottom of the light.Â
-
Is a red and amber unit available
Sorry, no. All the SG lights are Red/Green as sold.  We looked for Amber replacement lenses and that was a no go as well.
-

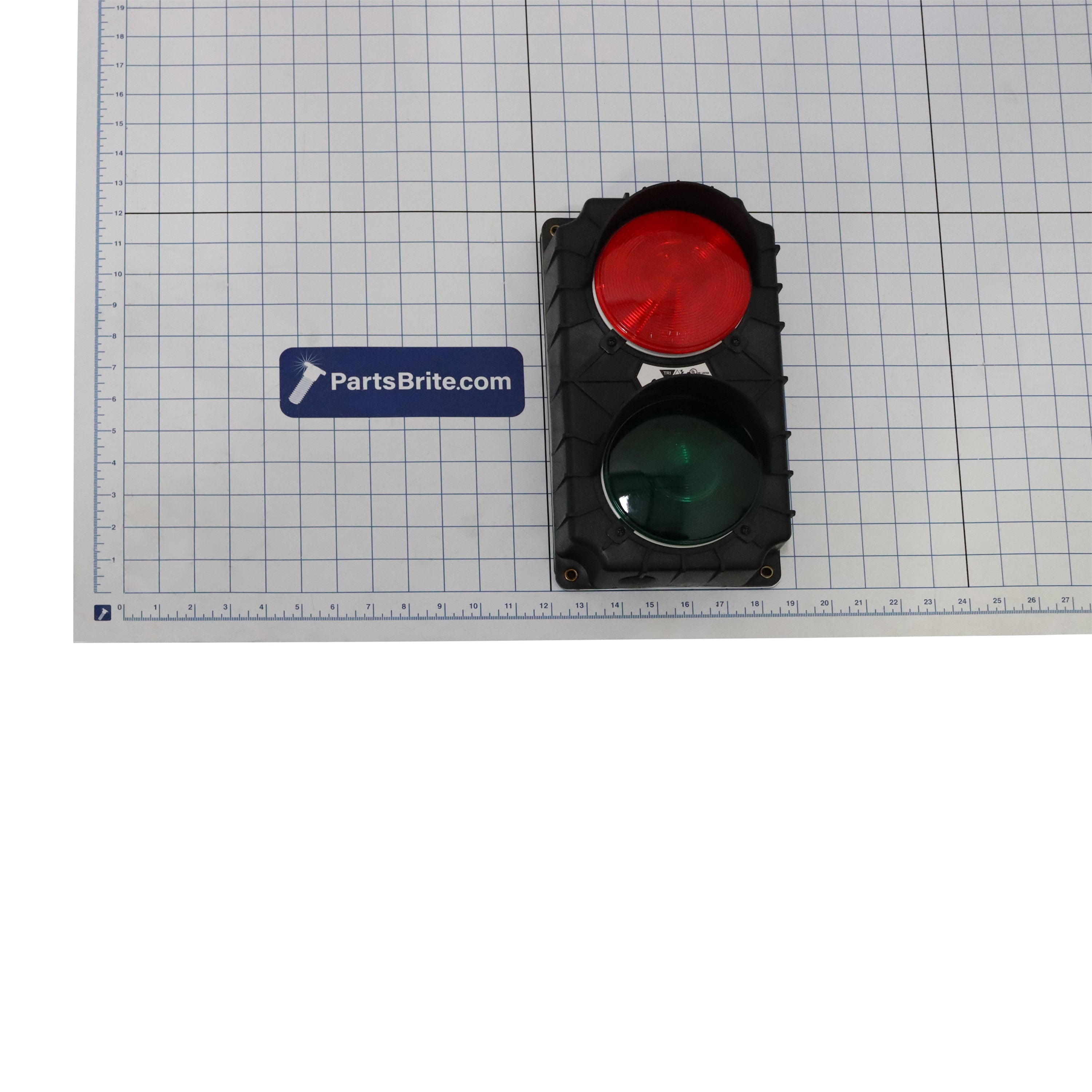

What is the dimensions of this light?
Lens Diameter: 4 1/4"
Case Size: 11 3/8"H x 6 3/8"W x 3 3/4"D
Weight: 2 pounds -
Can i plug this into a wall socket?
The SG-115 series are not plug-in models. They have 4 wires coming out of the back.  Black - Hot for the Red Light
Green - Ground
White - Neutral for both lights
Black (labeled GREEN) - Hot for the Green Light
